Product Description: Reducing Tee is a type of pipe fitting used for branch connections in pipeline systems. …
Reducing Tee

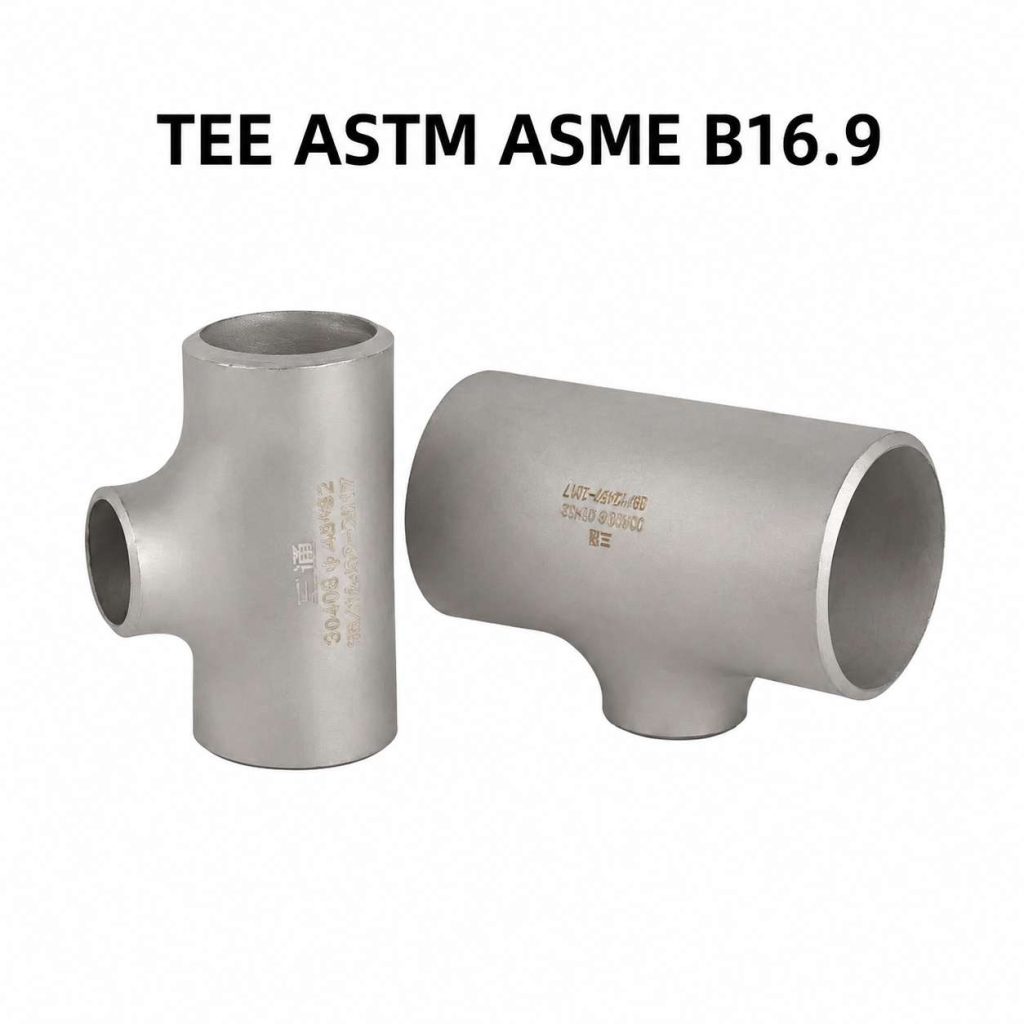

A Reducing Tee is a branch pipe fitting designed to connect pipelines of different diameters. Unlike a Straight Tee, the branch outlet of a reducing tee has a smaller nominal diameter than the run pipe, allowing fluid to be diverted from a larger main pipeline into a smaller branch line or combined from multiple lines into a single flow.
Its versatile design enables efficient flow distribution while maintaining the integrity of the main pipeline. Reducing Tees are widely used in oil & gas, petrochemical, power generation, municipal water systems, food processing, and industrial piping networks.
Product Features
• Different Diameter Connections
Designed with a larger run pipe and a smaller branch outlet, making it ideal for connecting pipelines with varying flow requirements.
• Efficient Flow Distribution
Allows smooth diversion or collection of liquids, gases, steam, and other media without interrupting the main pipeline flow.
• Flexible Pipeline Design
Provides an effective solution for branch connections where different pipe sizes are required within the same piping system.
• High Structural Strength
Manufactured using advanced forming technologies to ensure excellent mechanical performance, pressure resistance, and long service life.
• Wide Material Availability
Available in carbon steel, stainless steel, alloy steel, and other materials to meet diverse industrial requirements.
Types of Reducing Tees
By Branch Angle
Straight Reducing Tee
The branch outlet is positioned at a 90° angle to the run pipe.
Benefits:
• Most commonly used configuration
• Easy installation and maintenance
• Suitable for general industrial and municipal piping systems
• Reliable flow distribution performance
Reducing Lateral Tee
The branch outlet is positioned at a 45° angle or other specified angle.
Benefits:
• Reduced turbulence and pressure loss
• Improved flow efficiency
• Lower erosion and wear
• Suitable for high-flow and high-viscosity media
By Manufacturing Method
Seamless Reducing Tee
Manufactured from seamless pipe through hot forming or forging processes.
Benefits:
• No weld seams
• Excellent pressure resistance
• Superior mechanical strength
• Suitable for critical service applications
Welded Reducing Tee
Fabricated by welding steel plates or pipe sections together.
Benefits:
• Cost-effective solution
• Suitable for medium and low-pressure systems
• Available in large diameters
• Flexible customization options
Forged Reducing Tee
Produced through precision forging processes.
Benefits:
• Dense material structure
• High dimensional accuracy
• Excellent mechanical properties
• Ideal for high-pressure small-diameter systems
Manufacturing & Quality Control
Haiyuan Pipe Fittings manufactures Reducing Tees using advanced production technologies and strict quality control procedures to ensure reliable performance and dimensional accuracy.
Hot Forming Process
Seamless pipe blanks are heated and formed using specialized molds and hydraulic equipment to create accurate branch connections with uniform wall thickness.
Forging Process
Selected materials are heated and forged to achieve superior mechanical strength and pressure resistance.
Welded Fabrication
Large-size and customized reducing tees can be fabricated through qualified welding procedures followed by comprehensive inspection and testing.
Each tee undergoes comprehensive inspections including:
• Raw Material Verification
• Dimensional Inspection
• Wall Thickness Measurement
• Surface Examination
• Non-Destructive Testing (NDT)
• Hydrostatic Pressure Testing
• Final Quality Control Verification
Materials & Standards
Available Materials
• Carbon Steel (ASTM A234 WPB, Q235B, 20# Steel)
• Stainless Steel (ASTM A403 WP304, WP304L, WP316, WP316L)
• Alloy Steel (ASTM A234 WP11, WP22, WP91)
• Low Temperature Steel
• Customized Materials Available
Manufacturing Standards
Produced according to international standards including:
• ASME B16.9
• ASTM A234
• ASTM A403
• MSS SP-75
• EN 10253
• DIN Standards
• GB/T 12459
• GB/T 13401
Applications
Reducing Tees are widely used in:
• Oil & Gas Pipeline Systems
• Petrochemical Plants
• Chemical Processing Facilities
• Power Generation Projects
• Municipal Water Supply Systems
• Wastewater Treatment Plants
• Industrial Process Piping
• HVAC Systems
• Shipbuilding Industry
• Food & Beverage Processing
• Pharmaceutical Manufacturing
Typical Uses
• Main Pipeline Branch Connections
• Natural Gas Distribution Networks
• Steam Distribution Systems
• Cooling Water Circulation Systems
• Refinery Process Piping
• Chemical Plant Production Lines
• Clean Process Piping Systems
• Instrument and Auxiliary Equipment Connections
Installation Considerations
Proper Size Selection
Ensure that the run pipe and branch outlet dimensions match the pipeline design requirements and operating conditions.
Pressure Rating Compatibility
Select the appropriate wall thickness and pressure class according to the system pressure and temperature requirements.
Material Matching
The reducing tee material should be compatible with the connected pipeline material to ensure corrosion resistance and long-term reliability.
Welding and Testing
Proper alignment, qualified welding procedures, and pressure testing should be performed to ensure leak-free and safe operation.
